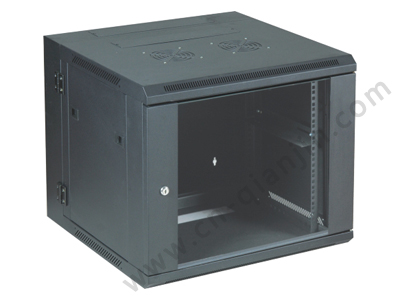

| W2 WALL CABINET |
 |
| |
| Standard： |
| ●Comply with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PART1、DIN41494;PART7 |
| |
| Feature: |
| ●Double section welded frame structure; |
| ●Easy operation and maintaining at the back; |
| ●19” standard installation； |
| ●Removable side panels, side locks are optional, easy installing and maintaining； |
| ●Cable entry at the top cover and bottom panel; |
| ●120mm fan optional； |
| ●Turning angle of front door is above 180 degrees; |
| ●Turning angle of rear door is above 90 degrees. |
| |
| Material: |
| ●SPCC Cold Rolled Steel； |
| ●Thickness：Mounting profile: 1.5mm, others: 1.2mm |
| |
| Main parts： |
| 1 Frame with 4 pcs19” mounting rail,2 side panel,1 Front door in glass,but it can also changes to other door style, Cabinet below 12U,2pcs “L” Bracket,10 M6 Square screw & nut Cabinet above 15U, 4pcs “L” Bracket,20pcs M6 Square screw & nut |
| |
| Specification(产品规格型号) |
|
MODEL NO.(订购代码)
|
CAPACITY(容量)
|
WIDTH(宽度)
|
DEPTH(深度)
|
HEIGHT(高度)
|
|
( U )
|
(mm)
|
(mm)
|
(mm)
|
|
W2.6506.00■■
|
6
|
600
|
550
|
368
|
|
W2.6509.00■■
|
9
|
501
|
|
W2.6512.00■■
|
12
|
635
|
|
W2.6515.00■■
|
15
|
769
|
|
W2.6518.00■■
|
18
|
901
|
| |
| Definition of color(机柜颜色定义) |
|
Model No.(订购代码)
|
Color(颜色)
|
|
|
|
W2.■■■■.■■01
|
RAL9004
|
BLACK(黑色)
|
|
|
|
W2.■■■■.■■00
|
RAL7035
|
GRAY(灰色)
|
|
|
|
|
|
|
|
