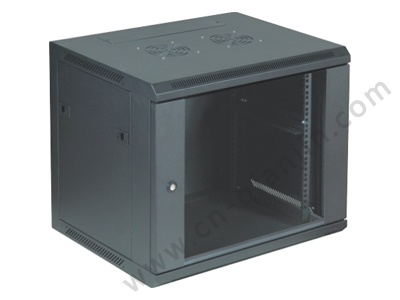

| W1 WALL CABINET |
 |
| |
| Standard： |
| ●Comply with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PART1、DIN41494;PART7 |
| |
| Feature: |
| ●Welded frame, reliable structure; |
| ●Standing or wall mounting installation； |
| ●Adjustable feet and heavy duty castors are optional； |
| ●Easy mounting installation（patent）； |
| ●19” standard installation； |
| ●Removable side panels, side locks optional |
| ●Cable entry on both of top cover and bottom panel; |
| ●120mm fan available； |
| ●Turning angle of front door is over 180 degrees； |
| |
| Material: |
| ●SPCC Cold Rolled Steel； |
| ●Thickness：Mounting profile: 1.5mm, others: 1.2mm |
| |
| Surface Finish: |
| |
| Main parts： |
| 1 Frame with 4 pcs19” mounting rail,2 side panel,1 Front door in glass,but it can also changes to other door style, Cabinet below 12U,2pcs “L” Bracket,10 M6 Square screw & nut Cabinet above 15U, 4pcs “L” Bracket,20pcs M6 Square screw & nut |
| |
| 产品规格型号(Specification) |
|
MODEL NO.(订购代码)
|
CAPACITY(容量)
|
WIDTH(宽度)
|
DEPTH(深度)
|
HEIGHT(高度)
|
|
( U )
|
(mm)
|
(mm)
|
(mm)
|
|
W1.6406.00■■
|
6
|
600
|
450
|
368
|
|
W1.6606.00■■
|
600
|
|
W1.6409.00■■
|
9
|
450
|
501
|
|
W1.6609.00■■
|
600
|
|
W1.6412.00■■
|
12
|
450
|
635
|
|
W1.6612.00■■
|
600
|
|
W1.6415.00■■
|
15
|
450
|
769
|
|
W1.6615.00■■
|
600
|
|
W1.6418.00■■
|
18
|
450
|
901
|
|
W1.6618.00■■
|
600
|
| |
| Definition of color(机柜颜色定义) |
|
|
|
Model No.(订购代码)
|
Color(颜色)
|
|
|
|
W1.■■■■.■■01
|
RAL9004
|
BLACK(黑色)
|
|
|
|
W1.■■■■.■■00
|
RAL7035
|
GRAY(灰色)
|
|
|
|
|
|
|
|
