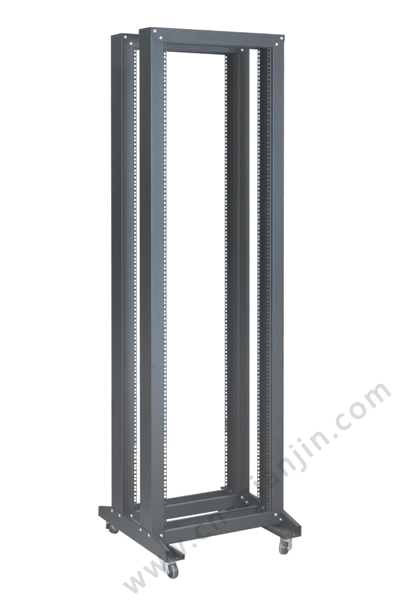

| R2 OPEN RACKS |
 |
| |
| Standard: |
| ●Comply with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PART1、DIN41494;PART7 |
| |
| Feature: |
|
|
|
|
|
|
| ●Modular design, easily assemble and disassemble for delivery, low-cost. |
|
|
| ●Various optional accessories according to requirements (cable management slot, removable working panel, etc.,) |
| |
| Material: |
|
|
|
|
|
|
| ●SPCC cold rolled steel； |
|
|
|
|
|
| ●Thickness: plinth: 2.0mm; Front and bottom beams：2.0mm, Pole: 1.5mm. |
|
|
| |
| Surface finish: |
|
|
|
|
|
|
| ●Degreasing, pickling, phosphoric, powder coated |
|
|
|
| |
| Loading Capacity: |
|
|
|
|
|
|
| ●Static loading: 300KG |
|
|
|
|
|
| |
| Specification(产品规格型号) |
|
MODEL NO.(订购代码)
|
CAPACITY(容量)
|
WIDTH(宽度)
|
DEPTH(深度)
|
HEIGHT(高度)
|
|
( U )
|
(mm)
|
(mm)
|
(mm)
|
|
R2.6622.00■■
|
22
|
600
|
600
|
1119
|
|
R2.6632.00■■
|
32
|
1562
|
|
R2.6637.00■■
|
37
|
1785
|
|
R2.6642.00■■
|
42
|
2007
|
|
R2.6647.00■■
|
47
|
2230
|
| |
| Definition of color(机柜颜色定义) |
|
Model No.(订购代码)
|
Color(颜色)
|
|
|
|
R2.■■■■.■■01
|
RAL9004
|
BLACK(黑色)
|
|
|
|
R2.■■■■.■■00
|
RAL7035
|
GRAY(灰色)
|
|
|
|
|
|
|
|
