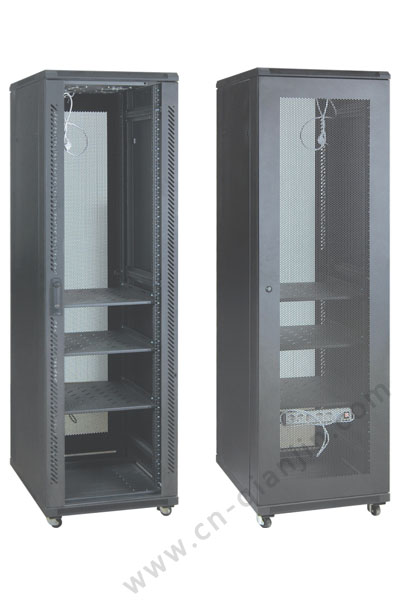

| Q3 Standing Server cabinet |
 |
| |
| Standard: |
| ●Comply with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PART1、DIN41494;PART7 |
| |
| Feature: |
| ●Exquisite design with precise dimension and craftsmanship； |
| ●Toughened glass door with net hole, vented front door border and steel rear door； |
| ●Adjustable feet and heavy duty castors are available simultaneously； |
| ●Cable entry on the top cover and bottom panel with adjustable sizes ； |
| ●Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation; |
| ●Efficient and reliable cabinet connection by baying kit； |
| ●Removable side panels to ease maintain； |
| |
| Material: |
| ●SPCC cold rolled steel； |
| Thickness: mounting profile 2.0mm, mounting angle 1.0mm, others 1.2mm |
| |
| Surface finish: |
| ●Degreasing, pickling, phosphoric, powder coated |
| |
| Loading capacity: |
| ●Static loading: 800KG |
| |
| Main parts: |
1 frame with 4pcs 19” Mounting profile,2 side panel,1 rear door,1 front door,1set 6 units multi power socket,4 M12 adjustable Feet,4 two heavy duty castor,1 Allen Wrench.2 cable managed slot for width of 800mm cabinet
Height below 1600mm,1 shelf,20 sets M6 nut &screw |
| |
Height above 1600mm,3 shelf,40 sets M6 nuts & screw
Depth below 800mm, 1 sets 2 units fans
Depth above 800mm,1 sets 4 units fans |
| |
| Specification(产品规格型号) |
|
MODEL NO.(订购代码)
|
CAPACITY(容量)
|
WIDTH(宽度)
|
DEPTH(深度)
|
HEIGHT(高度)
|
|
( U )
|
(mm)
|
(mm)
|
(mm)
|
|
Q3.6618. 00■■
|
18
|
600
|
600
|
988
|
|
Q3.6818. 00■■
|
800
|
|
Q3.6018. 00■■
|
1000
|
|
Q3.6622. 00■■
|
22
|
600
|
600
|
1166
|
|
Q3.6822. 00■■
|
800
|
|
Q3.6022. 00■■
|
1000
|
|
Q3.6627. 00■■
|
27
|
600
|
600
|
1388
|
|
Q3.6827. 00■■
|
800
|
|
Q3.6027. 00■■
|
1000
|
|
Q3.6632. 00■■
|
32
|
600
|
600
|
1610
|
|
Q3.6832. 00■■
|
800
|
|
Q3.6032. 00■■
|
1000
|
|
Q3.6637. 00■■
|
37
|
600
|
600
|
1833
|
|
Q3.6837. 00■■
|
800
|
|
Q3.6037. 00■■
|
1000
|
|
Q3.6642. 00■■
|
42
|
600
|
600
|
2055
|
|
Q3.6842. 00■■
|
800
|
|
Q3.6042. 00■■
|
1000
|
|
Q3.8642. 00■■
|
800
|
600
|
|
Q3.8842. 00■■
|
800
|
|
Q3.8042. 00■■
|
1000
|
|
Q3.6647. 00■■
|
47
|
600
|
600
|
2277
|
|
Q3.6847. 00■■
|
800
|
|
Q3.6047. 00■■
|
1000
|
|
Q3.8647. 00■■
|
800
|
600
|
|
Q3.8847. 00■■
|
800
|
|
Q3.8047. 00■■
|
1000
|
|
|
| Definition of color(机柜颜色定义) |
|
Model No.(订购代码)
|
Color(颜色)
|
|
Q3.■■■■.■■01
|
RAL9004
|
BLACK(黑色)
|
|
Q3.■■■■.■■00
|
RAL7035
|
GRAY(灰色)
|
|
|
|
|
|
