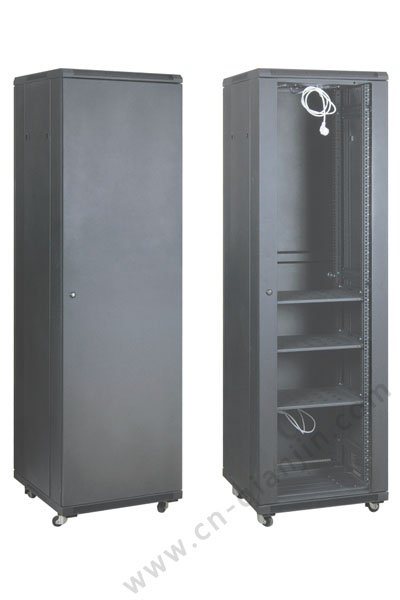

Q2 STANDING NETWORK CABINET

Standard:
●Comply with ANSI/EIA RS-310-D、IEC60297-2、DIN41494;PART1、DIN41494;PART7

Feature:
●Exquisite design with precise dimension and craftsmanship;
●Toughened glass door with net hole, vented front door border and steel rear door;
●Adjustable feet and heavy duty castors are available simultaneously;
●Cable entry on the top cover and bottom panel with adjustable sizes ;
●Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;
●Efficient and reliable cabinet connection by baying kit;
●Removable side panels to ease maintain;
●Around 1/3 assembled original volume when flat pack.

Material:
●SPCC cold rolled steel;
Thickness: mounting profile 2.0mm, mounting angle 1.0mm, others 1.2mm

Surface finish:
●Degreasing, pickling, phosphoric, powder coated

Loading capacity:
●Static loading: 800KG

Main parts:
1 frame with 4pcs 19” Mounting profile,2 side panel,1 rear door,1 front door,1set 6 units multi power socket,4 M12 adjustable Feet,4 two heavy duty castor,1 Allen Wrench.2 cable managed slot for width of 800mm cabinet
Height below 1600mm,1 shelf,20 sets M6 nut &screw

Height above 1600mm,3 shelf,40 sets M6 nuts & screw
Depth below 800mm, 1 sets 2 units fans
Depth above 800mm,1 sets 4 units fans

Specification(产品规格型号)

MODEL NO.(订购代码)

CAPACITY(容量)

WIDTH(宽度)

DEPTH(深度)

HEIGHT(高度)

( U )

(mm)

(mm)

(mm)

Q2.6618. 00■■

18

600

600

988

Q2.6818. 00■■

800

Q2.6018. 00■■

1000

Q2.6622. 00■■

22

600

600

1166

Q2.6822. 00■■

800

Q2.6022. 00■■

1000

Q2.6627. 00■■

27

600

600

1388

Q2.6827. 00■■

800

Q2.6027. 00■■

1000

Q2.6632. 00■■

32

600

600

1610

Q2.6832. 00■■

800

Q2.6032. 00■■

1000

Q2.6637. 00■■

37

600

600

1833

Q2.6837. 00■■

800

Q2.6037. 00■■

1000

Q2.6642. 00■■

42

600

600

2055

Q2.6842. 00■■

800

Q2.6042. 00■■

1000

Q2.8642. 00■■

800

600

Q2.8842. 00■■

800

Q2.8042. 00■■

1000

Q2.6647. 00■■

47

600

600

2277

Q2.6847. 00■■

800

Q2.6047. 00■■

1000

Q2.8647. 00■■

800

600

Q2.8847. 00■■

800

Q2.8047. 00■■

1000



Definition of color(机柜颜色定义)

Model No.(订购代码)

Color(颜色)

Q2.■■■■.■■01

RAL9004

BLACK(黑色)

Q2.■■■■.■■00

RAL7035

GRAY(灰色)
